The head-cursor model landed in 903fa7a and stopped there: the backend
moved the head instead of deleting turns, but a bundle still reopened at
its newest row, the browser had no way forward, and five inherited tests
still asserted the contract Undo had just stopped honouring. This is the
rest of the milestone, plus the one unsafe operation the review found.
Export now writes headDepth, and it belongs on the other side of the rule
app/bundle.py states about itself. The head depth used to be derived —
the tip of the head branch, a fact about the nodes that arrived with it —
and that was true while Undo deleted, because the newest row was the only
place a story could be read. It is a decision now: the same tree exports
identically whether the user undid three turns or none, so the file has
to say. An import that ignored it would silently Redo the story to its
newest retained turn, which is the Phase 0B export finding this milestone
exists to close. A file with no headDepth is opened at the tip, which is
not a fallback but the position such a file recorded; a file naming a
depth its own rows do not reach is refused in plan(), before a row is
written, for the reason that module gives about half-written trees.
Which branches the story has left goes into the file for the same reason.
Every row of an abandoned line arrives on an import either way, so the
disposition is the only thing telling it apart from an active one, and a
restored backup that had lost it would have nothing for the later cleanup
and recovery screens to select on. Both keys or neither: a time with no
depth cannot say what was displaced.
The browser gets a Redo button beside Undo, on Ctrl+Shift+Z, and both are
enabled from can_undo/can_redo rather than from the transcript. Neither
is derivable on the client — Undo stops at the campaign opening, which
may be off the top of the loaded window, and Redo depends on the retained
future, which the client is never sent — so the flags now ride on every
window the server hands back, including a scrolled-up page and the
response to an import. Moving the head also refreshes the state panels,
which undo never did: it has rolled the world state back since long
before M3 and the drawer kept showing the old numbers.
An in-place edit is now refused when story descends from the turn and is
not on screen. Editing rewrites one row and re-evaluates nothing, which
is what makes it a correction rather than a continuation, and that is
harmless while everything below the turn is visible — the reader can see
what their change has to agree with. It stops being harmless when the
continuation is undone, or was left behind by a divergence, because the
edit then silently changes the words an invisible stretch of story was
written from. That was the one way M3's retained history could be made to
contradict itself. Refusing is deliberately the whole of the fix: making
such an edit fork is STORY-BRANCH-SEMANTICS.md §14-15, and §15 wants the
state the edited prose implies re-evaluated, which is M5's extraction
pass. The requirement is not weakened, only deferred, and §14A now says
so.
The predicate asks one question rather than two. A descendant is
invisible either because it is past the head on this lineage or because
it is past a fork on a branch the story left, and both are "a live node,
deeper than this one, descending from it, off the path being read". A
first attempt scoped the search to branches other than the active one and
failed the divergence case, correctly: the departed branch is usually an
ancestor of the branch now being read. Only the deepest live node on each
descending branch is examined, because visibility is monotone in depth.
Five inherited tests are rewritten rather than deleted, because what they
were protecting is still worth protecting and only the mechanism changed.
The undo-state pair keeps its state assertions and swaps "the rows are
gone" for "the rows are all here and the story is read from earlier". The
memory test stops asserting that undo prunes memories and starts
asserting the property that replaced it: a memory past the head is
unreachable, still on disk, and retrievable again after Redo, with no
re-embedding. The attempt-group test still proves the group moves as one,
out of the story rather than out of the database. And the fork test
reverses: Undo used to refuse at a fork point because it deleted rows the
parent branch was also reading, and with nothing deleted there is nothing
to protect the parent from, so it now walks into the story the branch
inherits and stops at the campaign opening instead.
tests/test_head_cursor.py is the milestone's acceptance contract, named
by the items it discharges: D01-D10, E01-E04, I01-I03, I07, L01-L02, and
the invariant they all rest on — Undo deletes zero accepted turns,
asserted on row ids over the whole retained tree. E02 has both controls,
because a negative control alone would pass if memory retrieval were
simply broken. L01 records what it does not claim: the head does move by
one on a failed turn, onto the player's retained input, which is A05
rather than a gap. Two of the edit-guard tests exist to prove the guard
stays out of the way — a correction at the tip and a correction mid-story
with everything visible must both still work.
638 backend tests pass. Frontend lint is unchanged at seven pre-existing
warnings, none in the files touched; the bundle builds at 395.85 kB; the
production image builds.
Verified at runtime against the trusted-LAN Ollama over HTTPS: three
turns, two Undos, a Redo, a Retry, an Undo, a divergent continuation,
Redo correctly refused with 400, Undo back to the opening, export, a
process restart that reopened the campaign still undone, and an import
that opened at the same position with its retained future intact. The
browser click-through of that sequence has not been run — no session in
this milestone had a browser to drive — so the Redo control itself is
verified by its endpoint and its lint and build, not by a click.
Co-Authored-By: Claude Opus 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01QF5TcoB86QADgjHz1GZe8u
AI D&D
An AI Dungeon-style interactive storytelling app that runs entirely on your own machine, with your own AI model. Create scenarios, play open-ended adventures where an LLM narrates the world, and extend the engine with JavaScript scripts compatible with real AI Dungeon scripting.
▶️ Try it live: parththakkar106.github.io/AI-DnD
The project page loads instantly and launches the hosted demo in one tap. Play a scenario as a guest: no sign-up and no API key needed. The demo runs on a free tier that sleeps, so the first load after it's been idle takes about 30 to 60 seconds to wake up.
For the internals, read the design notes. They walk through the context budgeting, the world-state referee, and the memory bank, and state the reasoning behind each one (Markdown version).
Built with FastAPI and SQLAlchemy on the backend and React (Vite) on the frontend, running on SQLite locally and Postgres in the cloud. It works with any OpenAI-compatible endpoint: Ollama and LM Studio locally, or OpenRouter, OpenAI, Groq, or vLLM in the cloud. Endpoint, key, and model are all runtime settings, and OpenRouter's free-tier models make the whole experience cost nothing.

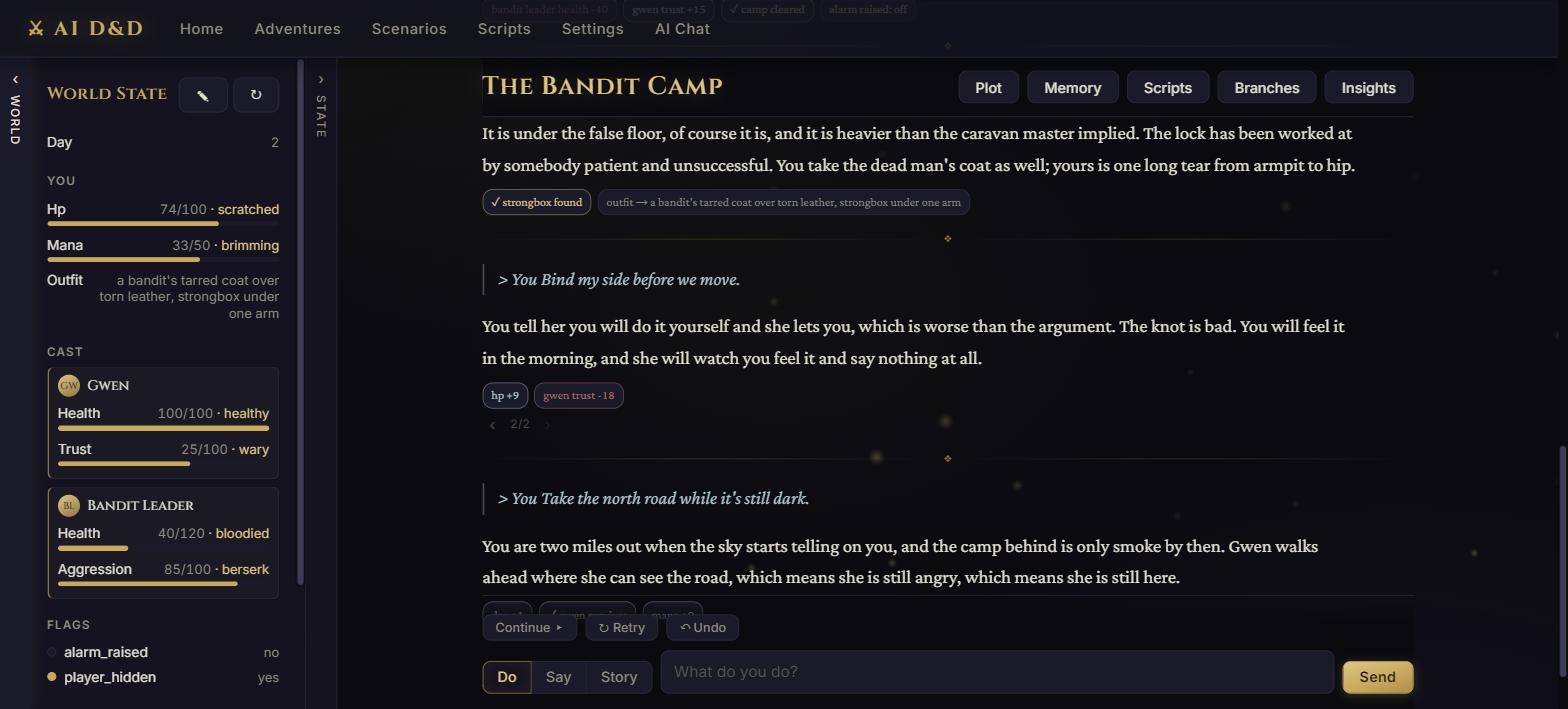

The play screen. The left rail shows live world state. The AI proposes changes each turn, and
a Python engine decides what actually sticks. The chip under the narration reports what
changed. The ‹ 2/2 › under a turn steps between the takes it has. Writing below a take that
isn't the live one starts a new branch.
Features
- The full play loop. Do / Say / Story / Continue actions, streamed AI responses (SSE), retry, undo, and edit. Reasoning models are supported: "thinking" streams into a collapsible 💭 panel with its own token budget.

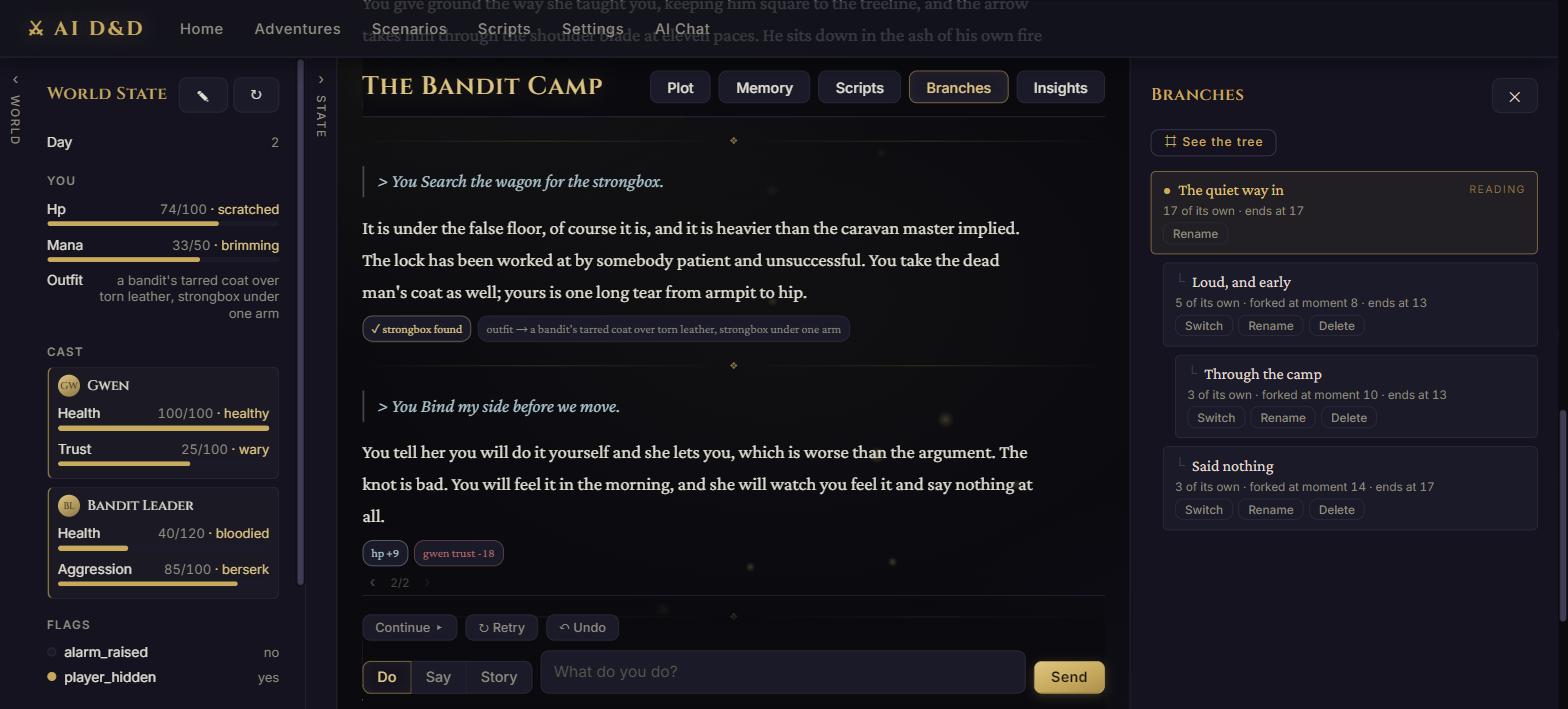

- A branching story tree. The story is a tree, not a list. Any turn can hold more than one
take, and
‹ 2/4 ›steps between them. Stepping is free: the story below simply empties, and the server is told nothing. Writing below a take that isn't the live one is what makes a branch. Branches borrow their ancestors' turns instead of copying them, so a fork costs about 100 bytes, and a 20-fork story loads within 1% of the same story flat. Switching restores that line's world state, script state, and cooldown clocks. A branch panel switches, renames, and deletes; ⌗ See the tree draws every line against the story's own clock (backend/app/tree.py,backend/app/context/lineage.py). - An RPG world-state engine. A scenario can declare stats, flags, milestones, and a named
cast; the adventure carries their live values. The AI proposes deltas, and a Python engine
referees them: it clamps values to range, enforces per-turn caps and cooldowns, keeps counters
monotonic and milestones sticky, then strips the machine-readable block out of the prose
(
backend/app/worldstate/engine.py). Word-labeled bands (40–60: minor damage) make the model reliable at it. No dice and no scripting are required. - AI Dungeon-compatible context engine. Memory, author's note, and story cards (world
info) are triggered by keywords in recent story text, then assembled under a token budget
(
backend/app/context/builder.py). - Insights: total prompt transparency. Every turn stores the exact prompt sent to the model. Open 🔍 on any AI action to see each context component, its token cost, and why it was included.
- JavaScript scripting, AI Dungeon-compatible.
onInput/onModelContext/onOutputmodifiers sharestateand aworldEntriesAPI, and run in an embedded quickjs sandbox (backend/app/scripting/). Real AI Dungeon scripts import and run as is. An in-app CodeMirror editor is included. - Auto-summarization and Memory Bank. The modern AI Dungeon memory system: AI-generated
memories every few actions, a running story summary, and embedding-based retrieval that
pulls old-but-relevant facts back into context, with similarity scores visible in Insights
(
backend/app/memorybank.py). - Undo and retry that actually roll back state. Undo and retry roll back the world state and script state to a per-node snapshot, not just the text, and prune the memories that covered the removed turns. Nothing a retry replaces is discarded: the old attempt stays as another take of that turn, one keystroke and one click from becoming a branch of its own.
- Import and export. AI Dungeon-compatible formats for scripts and scenarios; JSON for
everything else. An adventure exports as
ai-dnd-adventure-v2, which carries the whole tree: every branch, every take, and the fork points, since those were chosen rather than computed. Files saved in the old single-line format still import. - Optional accounts for hosted deployments. By default the app is single-user with zero
auth friction. Set
AIDND_MULTI_USER=1and visitors play instantly as guests (signed session cookie), can register (email and password) at any point to keep their data, and each user gets isolated data plus their own encrypted-at-rest API key. A server-funded shared demo key with a daily turn cap lets people try it without bringing a key (backend/app/auth.py). Each new guest is also given a copy of a short pre-played adventure, so the first screen shows real turns and their world-state changes without spending a demo turn (backend/app/starter.py).
Screenshots
 |
 |

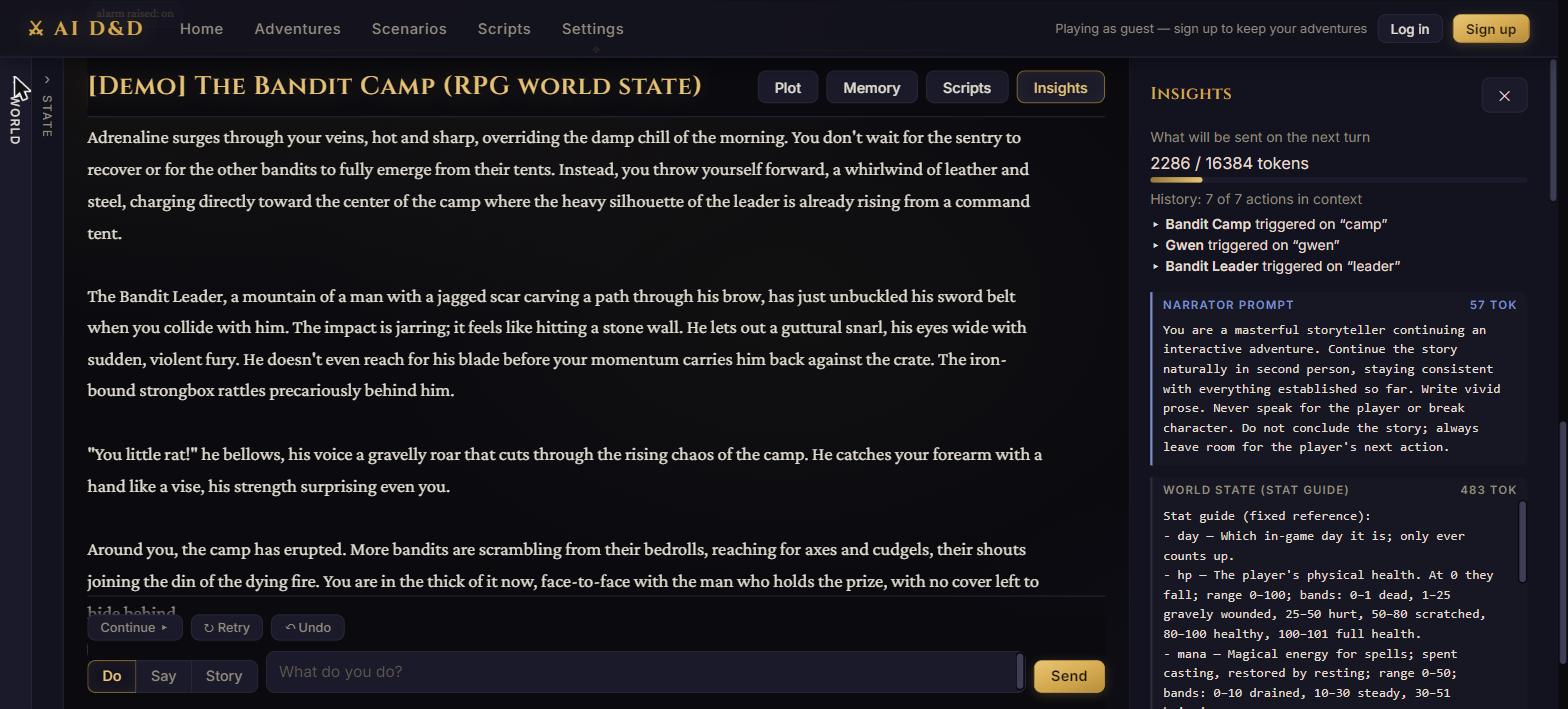

| Insights: the exact prompt for the next turn, broken into components with token counts and the trigger word that pulled each story card in. | Authoring: stats with ranges, per-turn caps, cooldowns, and word-labeled bands; NPCs the AI addresses by id. |
 |
 |

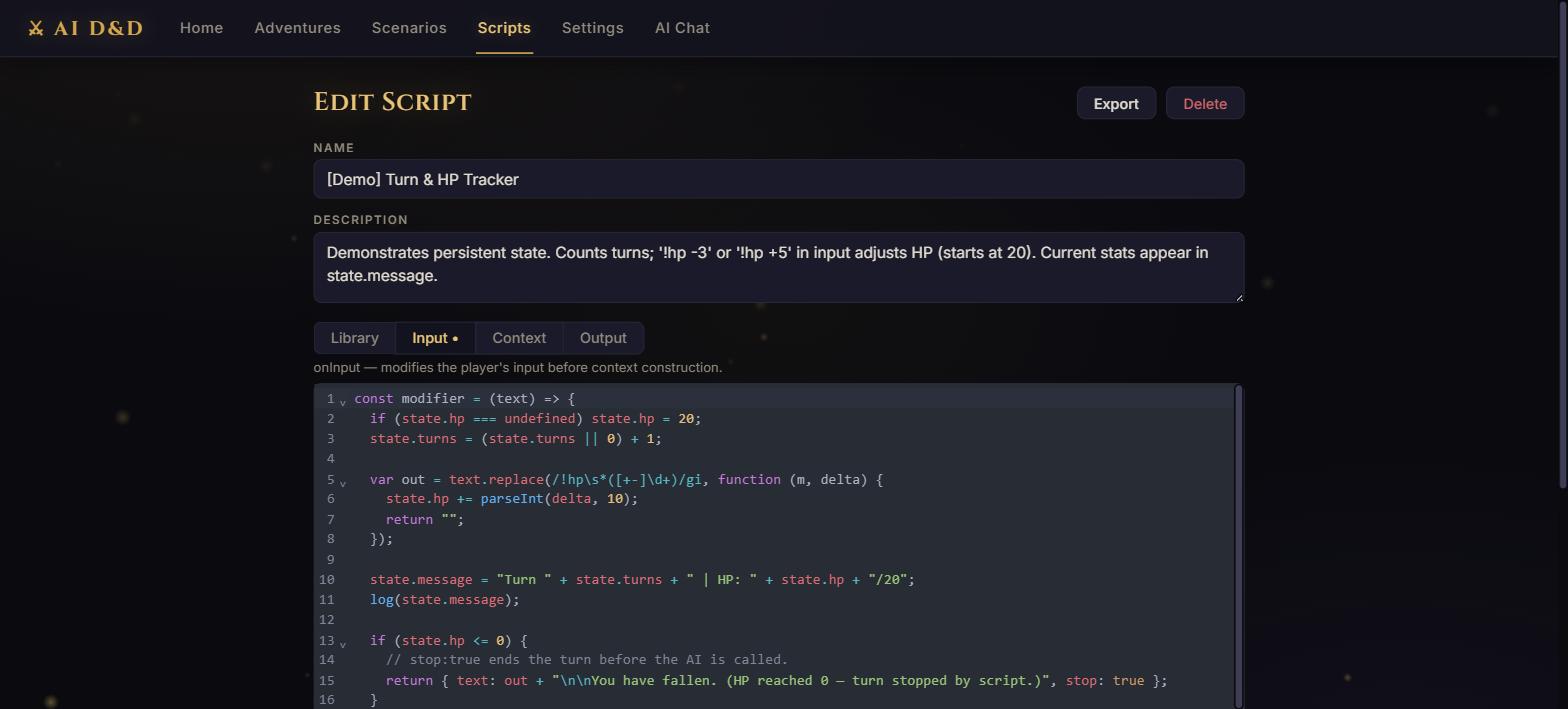

Scripting: the three AI Dungeon hooks with shared persistent state, run in a quickjs sandbox. |

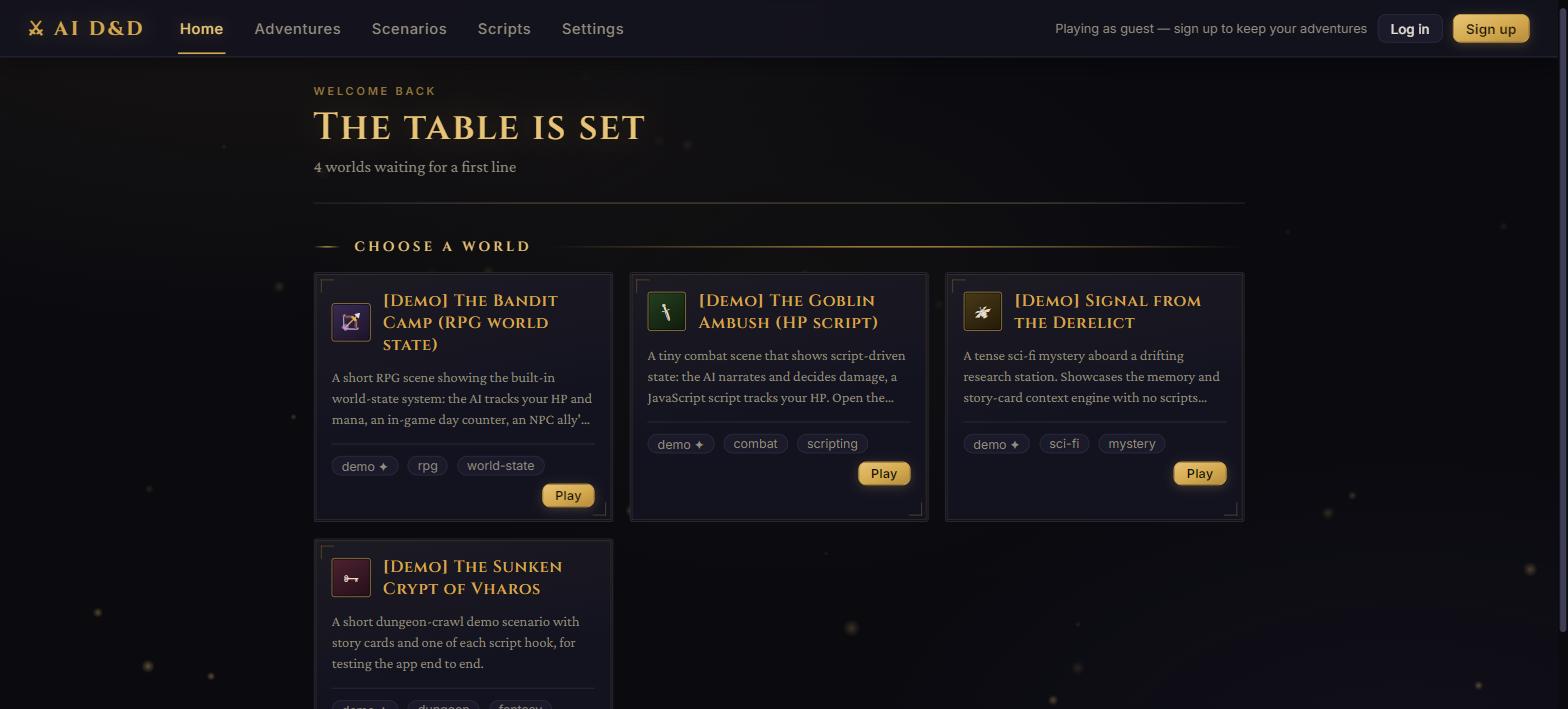

Home: continue a story in progress or start from a scenario. |
 |
 |

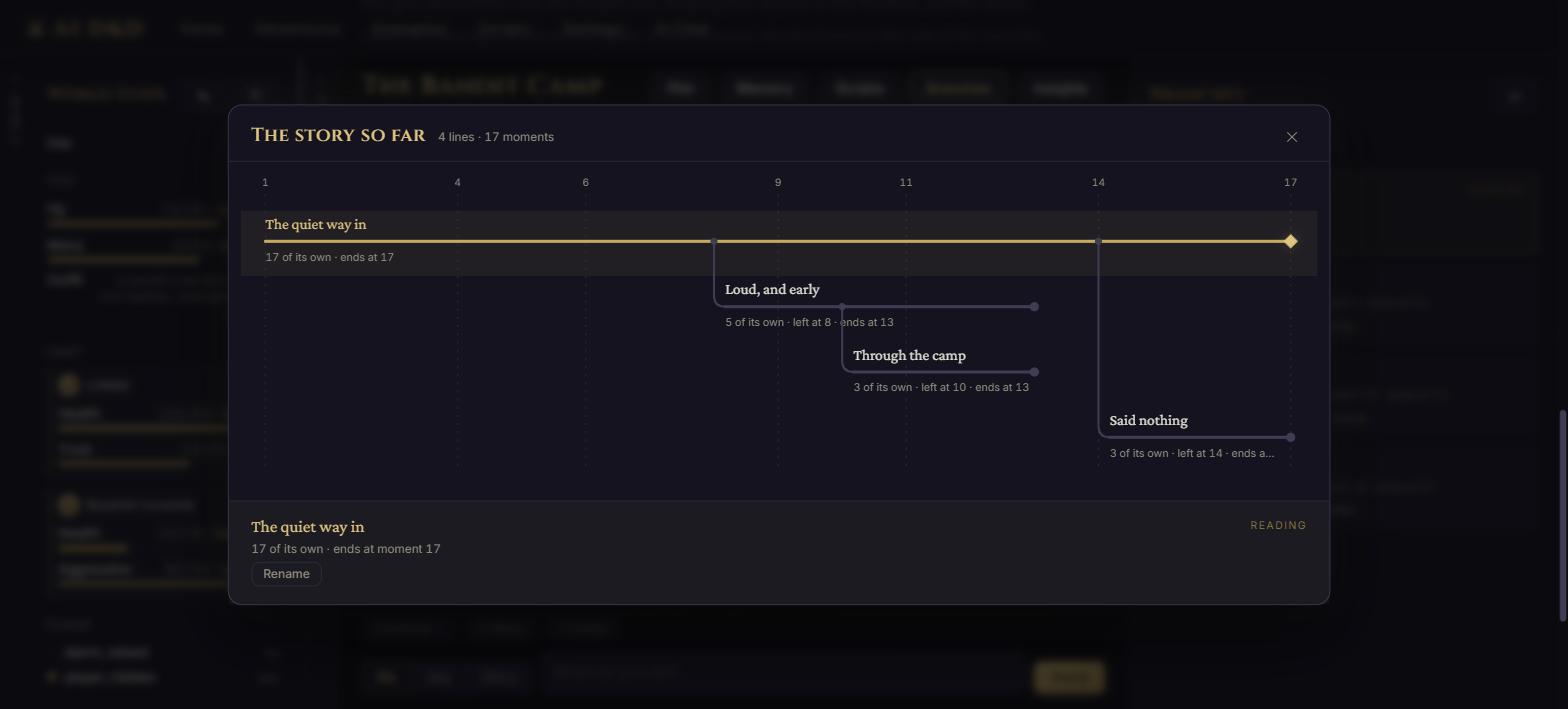

| The tree: one lane per line, from the moment it left its parent to the moment it ends. The horizontal axis is the story's own clock, so a short branch reads as short. | Branches: every line the story has taken, and the three things you can do to one. A line the one you're reading was forked from can't be deleted, and says so. |
Quick start
Docker (any OS)
docker compose up --build
Open http://localhost:8000. Your data persists in a named volume across restarts.
Windows
cd backend; python -m venv .venv; .\.venv\Scripts\pip.exe install -r requirements.txt; cd ..
cd frontend; npm install; cd ..
.\start.ps1
Open http://localhost:5173 (dev servers; API docs at http://localhost:8000/docs).
macOS / Linux
./start.sh # creates the venv and installs dependencies on first run
Open http://localhost:5173.
Connect a model
Open Settings in the app and point it at any OpenAI-compatible endpoint:
| Provider | Endpoint URL | Notes |
|---|---|---|
| Ollama (local) | http://localhost:11434/v1 |
free, private; also serves embedding models for the Memory Bank (e.g. nomic-embed-text) |
| LM Studio (local) | http://localhost:1234/v1 |
free, private |
| OpenRouter | https://openrouter.ai/api/v1 |
:free models cost nothing (no embeddings on the free tier) |
| OpenAI / Groq / vLLM / … | provider's /v1 URL |
anything speaking /v1/chat/completions |
| Claude Code CLI (local) | http://127.0.0.1:8787/v1 |
your Claude subscription instead of an API key; see Playing against Claude locally |
Model name, API key, generation parameters, and (optionally) summary and embedding models for the Memory Bank are all configured there too. No config files and no rebuild are needed.
Playing against Claude locally
backend/tools/claude_shim.py serves an OpenAI-compatible endpoint backed by the
claude command line tool, so you can play the demos against a real model without an
API key. Each request spawns one claude --print process, which suits the turn engine:
the app assembles the whole prompt every turn and expects a stateless endpoint.
cd backend
.venv/Scripts/python.exe tools/claude_shim.py # listens on 127.0.0.1:8787
In Settings, choose the OpenAI-compatible provider, set the base URL to
http://127.0.0.1:8787/v1, put any non-empty string in the API key field, and pick
sonnet. The shim ignores the key and authenticates as you, through the CLI. Set the
reasoning budget to 0 or -1: a positive budget sends a reasoning.max_tokens field
that Claude 5 models reject.
Embeddings are not served. Leave the embedding model blank, or point the Memory Bank at a real endpoint.
Run it against a local backend only. The endpoint has no authentication, and anything
reaching it spends your Claude quota. app/netguard.py blocks localhost endpoints when
AIDND_MULTI_USER is set, so a deployed instance cannot be pointed at it.
How a turn works
player input
→ onInput script modifier
→ assemble context: [narrator prompt] + [world state + stat guide] + [AI instructions]
+ [plot essentials] + [story summary] + [retrieved memories]
+ [triggered story cards] + [history along this branch, token-budgeted]
+ [author's note] + [player action]
→ onModelContext script modifier
→ snapshot context (Insights)
→ provider adapter → AI (streamed)
→ extract + referee the world-state delta block, strip it from the prose
→ onOutput script modifier
→ store & render
Architecture
frontend/ React + Vite SPA ──HTTP/SSE──► backend/ FastAPI
├─ routers/ auth, scenarios, adventures, story cards, scripts, chat, settings, analytics, debug
├─ models.py SQLAlchemy: User, Scenario, Adventure, Branch, Action, StoryCard, Script, Settings, Memory
├─ migrations.py hand-rolled, versioned via PRAGMA user_version (64 and counting)
├─ auth.py guest/registered users, sessions, shared demo key
├─ security.py password hashing, cookie signing, API-key encryption
├─ tree.py forking, promotion, and where a node is placed
├─ attempts.py the takes of one turn, grouped by parent
├─ context/ prompt assembly under a token budget + lineage/history windowing
├─ worldstate/ the stat engine: clamps, cooldowns, bands, milestones
├─ scripting/ quickjs sandbox + AI Dungeon API surface
├─ memorybank.py auto-summarization + embedding retrieval
├─ analytics.py buffered visit counters + the owner's dashboard query
├─ bundle.py the export/import formats, v2 (tree) and a v1 reader
├─ providers/ OpenAI-compatible adapter, streaming
└─ data.db SQLite (path overridable via AIDND_DB_PATH)
In production the backend serves the built SPA from one port (see Dockerfile). In
development, Vite proxies /api to FastAPI.
Tests
549 backend tests: unit tests plus full HTTP integration through the real quickjs scripting engine, with the LLM provider mocked. CI runs them on every push, alongside the frontend lint/build and a Docker image build.
cd backend && pip install -r requirements.txt -r requirements-dev.txt
python -m pytest tests/
Notes on performance
Two of the tests exist because of bugs that were measured rather than guessed at. They are the most interesting engineering in the repo.
- Database egress, cut about 189x. Every adventure load pulled
Action.context_snapshot, the entire assembled prompt at about 74 KB per turn, to read two small fields off it. Moving those fields into their own columns and marking the heavy onesdeferredtook one adventure load from 38.5 MB to 0.20 MB. The backfill runs server-side with dialect-specific SQL, so the old data never crosses the wire.tests/test_egress.pyhooks into SQLAlchemy's cursor events and fails if a bulk load ever names those columns again. - Turn cost, made flat. Assembling a turn walked the whole story, so cost scaled with story
length: 839 KB of reads at turn 200.
backend/app/context/history.pynow serves tails and slices from SQL and measures what it fetched. The same turn now costs 129 KB and stops growing at around turn 50. - Branching that costs nothing to read. A branch stores no turns. It stores where it left its parent, and borrows everything above that. A 40-turn story forked twenty times loads in 31,652 bytes against 31,433 bytes for the same story flat: a 1.007x ratio, or about 103 bytes per branch. Reads stay cheap because the lineage is windowed the same way the history is, so the number of SQL clauses is bounded by the context window rather than by the number of forks.
Visit analytics
The hosted demo keeps its own analytics: an owner-only dashboard at /analytics shows
traffic, which shared scenarios get played, turns and demo-key spend, errors, and a funnel
from visited to played a turn to signed up. It is visible only to the emails listed in
AIDND_ANALYTICS_EMAILS, and the route returns 404 for everyone else.
This is built into the app rather than added with a third-party script, for reasons specific
to this project: the CSP allows only script-src 'self', ad blockers block the popular
trackers, and none of those trackers can see the measurement that matters here, a turn. Counts
are aggregated in memory and flushed as UPSERTs, so a visit is a write and never a read, and
every dashboard query is a GROUP BY that returns tens of rows regardless of traffic volume.
That matters: see the egress note above for what reading rows per request costs on this stack.
Deploy (Render)
The repo ships a render.yaml blueprint: one Docker web service that serves
the SPA and API same-origin, backed by external Neon Postgres. The free
Render tier has no persistent disk, so the database lives off-box.
- Create a Neon project and copy its pooled connection string.
- In Render, choose New → Blueprint and point it at this repo. Render reads
render.yaml. - Fill in the secrets it prompts for (
sync: falsevars):AIDND_DATABASE_URL(the Neon string);AIDND_DEMO_API_KEYandAIDND_DEMO_MODELSto offer a no-signup demo; andAIDND_ANALYTICS_EMAILS(your own account's email) to see the Visitors dashboard.AIDND_SECRET_KEYis generated automatically and stays stable across deploys. - Deploy. Pushes to
mainauto-deploy after this. The health check is/api/health.
On the free tier the service sleeps after about 15 minutes idle, and the first request after
that takes about 30 to 60 seconds to wake it. Point any keep-warm pinger at /api/health,
which deliberately doesn't touch the database: waking the database around the clock costs far
more than the cold start saves.
If you put another proxy or CDN in front of Render, set AIDND_TRUSTED_PROXY_HOPS to the
number of proxies in the chain. It defaults to 1. The rate limiter reads the client IP that
many entries from the right of X-Forwarded-For, because the trusted edge appends the real
one last. Leave it at 1 behind two proxies and the limiter reads an entry the caller
supplied, so anyone can rotate the header for a fresh rate-limit bucket per request.
Repo notes
plan/holds the phased implementation plan this project was built from, kept as a build log. All fourteen phases are complete. The later files (11, 12, 14) also serve as design notes for the state-revert, world-state, and story-tree work.plan/STATUS.mdis the running thread: what shipped, what was measured, and what is owed next.docs/GUIDE.mdholds design notes: how each subsystem works and why it was built that way, with the measurements behind the decisions. It is also rendered as a reading page.backend/.env.examplelists the few environment variables the backend reads.docs/self-review.mdrecords a full-codebase self-review pass and what came out of it. All correctness findings are resolved.
